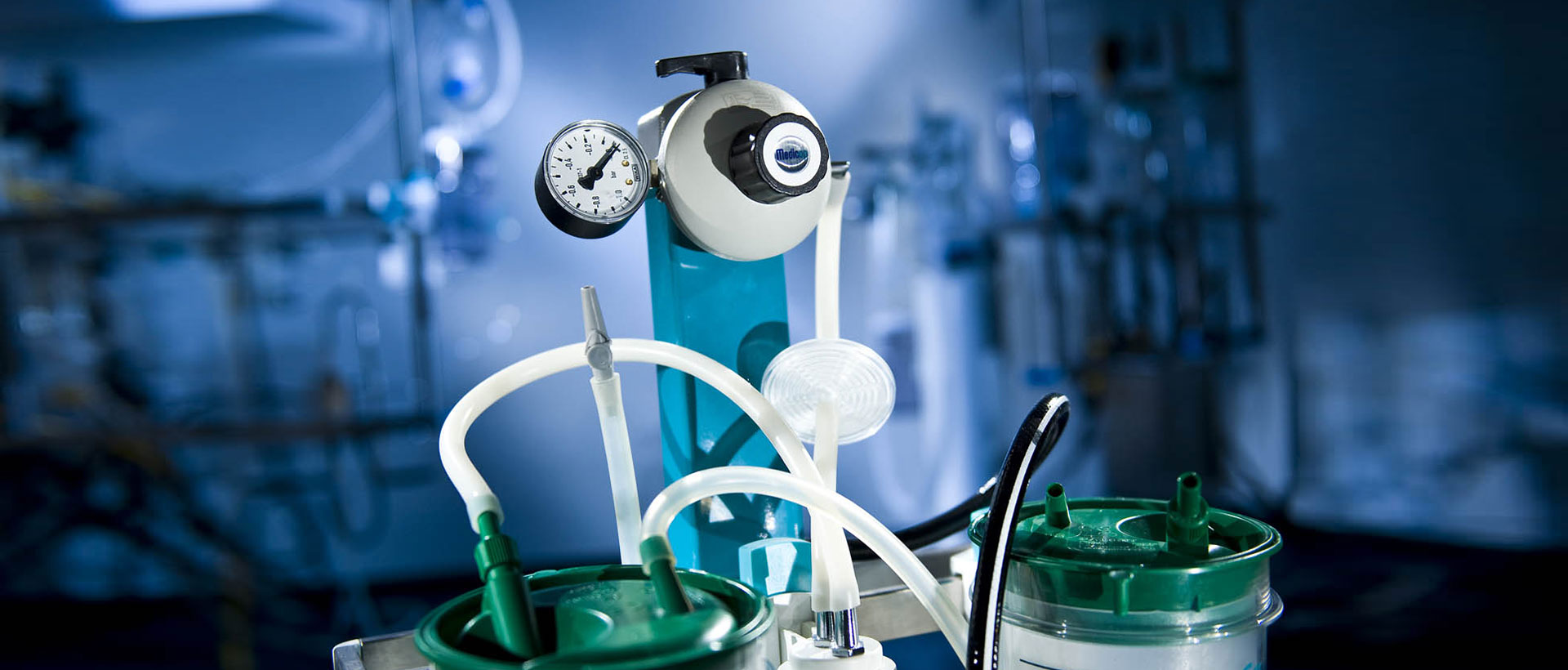

COMPRESSED AIR POWERED SUCTION UNITS

Compressed-air powered suction units generate a vacuum with compressed gas, usually air. For conversion of the compressed air into a vacuum, an ejector is used. The ejector can be connected to the central system of compressed gas directly or with a connector on a flexible tube, while compressed gas from a cylinder can also be used.

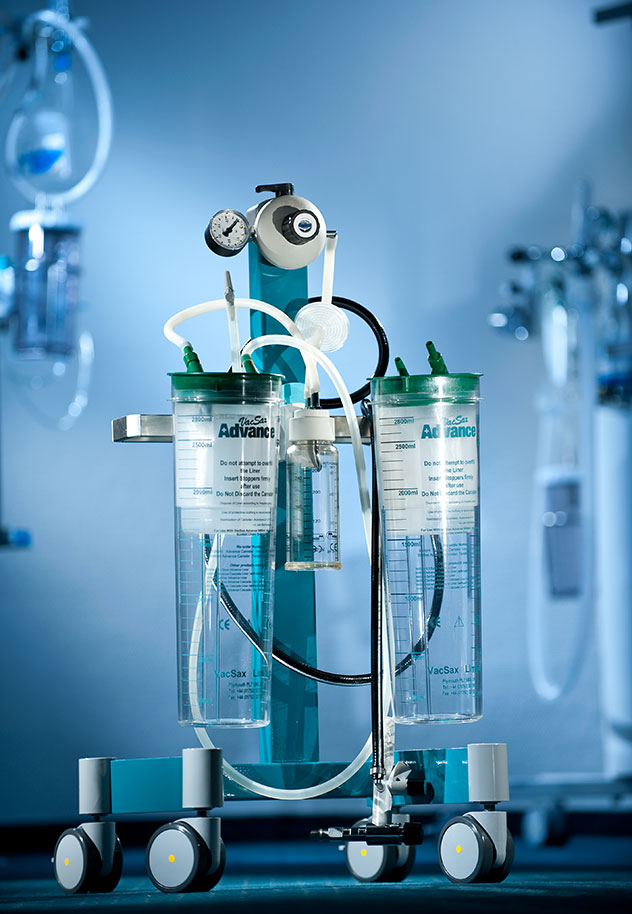

Vertikalna slika aspiratorja na stisnjen zrak Tehnična risba

A button for fine and rough vacuum regulation, a manometer (from 0 to -1.0 bar) for display of the currently selected vacuum power, a silencer, connecting accessories, a bacterial filter and an optional safety jar with a shut-off valve, which prevents liquid from entering the device, are installed on the ejector.

In combination with various suction jars an ejector can form:

- portable suction unit with reusable suction jars,
- portable suction unit with suction bags for single use,
- mobile suction unit for field operation.

Slika naprave Many diferent available configurations
{ Powered either by
compressed air or vacuum
these devices are
appropriate for all aspirating
purposes.
}

TECHNICAL DATA

Vacuum regulation range

from 0 to -1.0 bar

Max. suction power

-0.9 bar

Inlet pressure

Working 2.7 - 5.5 bar

Free air flow

15 l/min, or 25 l/min

Dimensions (mm)

A- connector

(100 + A) × 50 × 145 (without a safety jar)

(100 + A) × 140 × 145 (with a safety jar)

500 × 750 × 450 (ID 1540001)

450 × 300 × 170 (ID 1500001, 1550000) A - BS 60 mm

Weight - kg (total)

0.65 kg (without a safety jar)

1.0 kg (with a safety jar)

8.80 kg (ID 1540001)

3.70 kg (ID 1500001)

3.50 kg (ID 1550000)

Temperature

working 0 to 40°C

Standard

ISO 10079-3

Classification by MDD 93/42

IIa

AVAILABLE MODELS

1510008

Ejector, powered from compressed air or oxygen drive, rail mounted

including bacterial filter,silicone tube ř6mm and inlet probe

1510003

Ejector, powered from compressed air or oxygen drive, rail mounted

including safety jar, bacterial filter, silicone tube ř6 mm and inlet probe

1540001



Mobile suction unit, compressed air/oxygen powered, complete with two suction jars by choice (reusable suction jars: from 1000 to 4000 ml or suction bags for single use: from 2000 ml to 3000 ml), safety jar, bacterial filter, trolley with a jar carrier including antistatic wheels and all necessary tubes and inlet connector

1700013

Ejector, powered from compressed air/oxygen drive, directly including

bacterial filter, silicone tube ř6 mm and inlet probe

1510009

Ejector, powered from compressed air/oxygen drive, directly

including safety jar, bacterial filter, silicone tube ř6mm and inlet probe

1500001

Portable suction unit with two reusable suction jars and rail bracket, compressed air/oxygen powered, complete with all tubes, filters and inlet connector

1550000

Portable suction unit with two bags for single use , compressed air/

oxygen powered complete with all tubes, filters and inlet connector

AVAILABLE INLET CONNECTIONS

German, French, British, Italian, Japan, Australian
