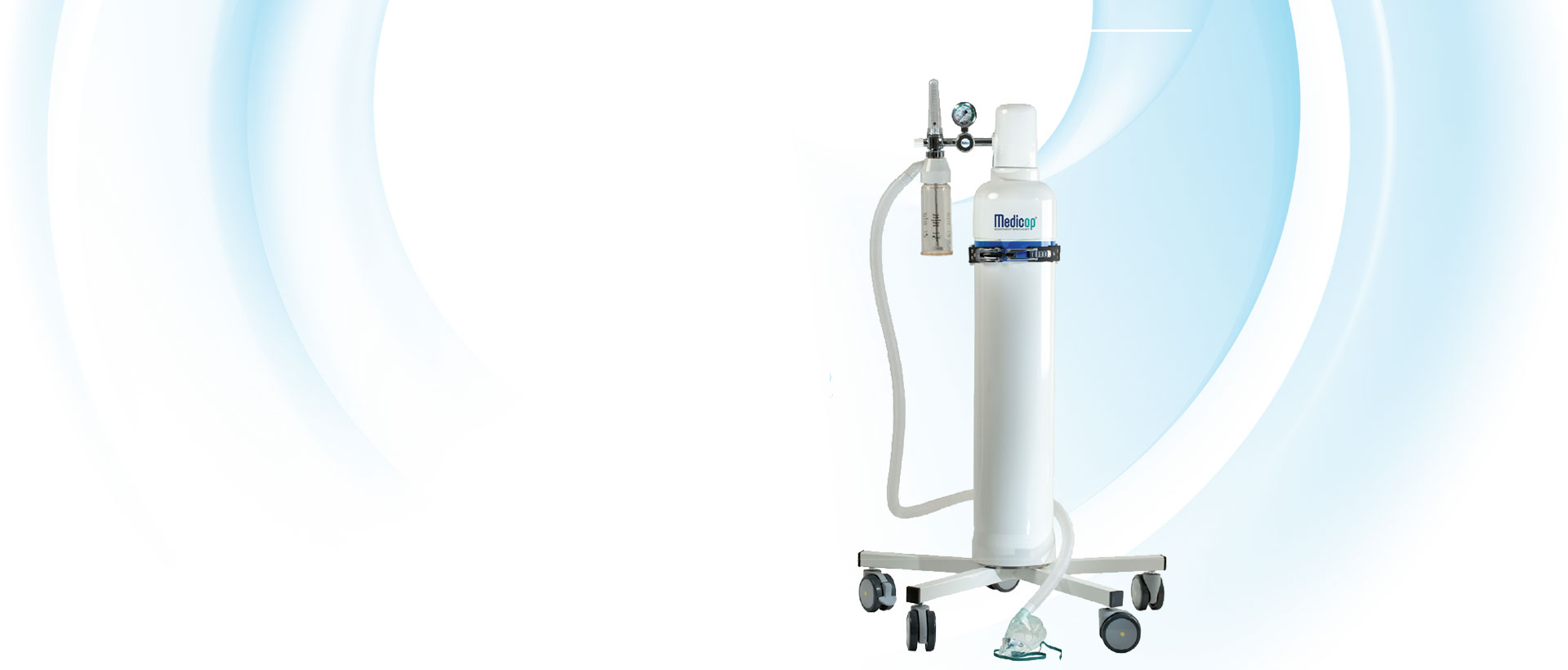

PORTABLE UNITS WITH TROLLEY

The oxygen cylinder (usually with capacity of 5 or 10 liters) is attached in vertical position to the trolley. The trolley is very stable.

Vertikalna slika jeklenke s kisikom Tehnična risba

The unit has a steel body and includes five castors with anti-static rubber. The trolley optionally includes a cover for the cylinder.

Configuration of complete device can be defined by user regarding to his specific needs. It is possible to use flowmeter (0 - 15 lit/min) with reusable or single-use humidifier, resuscitator and the suction units for these model of portable oxygen therapy device.

Slika naprave MOBILE O2 THERAPHY DEVICE

The cylinder is fixed to the plate by quick-release connectors and the regulator can be disassembled without tools, allowing very quickly and simply to change empty cylinder with full one.

{ Portable device
with a very
stable trolley.
}
TECHNICAL DATA
Dimensions 700 × 700 × 1140 mm
Weight (total) 40 kg
Oxygen flow regulation range

0 - 15 l/min

Vacuum regulation range 0 to -0.8 bar (with installed ejector)
Free air flow aspiration 15 l
Cylinder capacity 10 litres (equals 1500 litres of gas at 150 bar)
Pressure of filled cylinder up to 200 bar
Time of emptying the cylinder 25 hours, at constant outlet-flow of 1 l/min
Volume of humidifier canister 300 ml or 340 ml or 500 ml or 650 ml
Volume of suction jar 1 liter
AVAILABLE MODELS
1310001 Mobile oxygen therapy device; including cylinder (10 l), pressure reducer, flowmeter with humidifier and mask
1310002 Mobile oxygen therapy device; including cylinder (10 l), pressure reducer, flowmeter with humidifier, mask, suction unit and suction jar
1310003 Mobile oxygen therapy device; including cylinder (10 l), pressure reducer, flowmeter, mask and resuscitation bag
1310004 Mobile oxygen therapy device; including cylinder (10 l), pressure reducer, flowmeter, mask, suction unit, suction jar and resuscitation bag
